Description

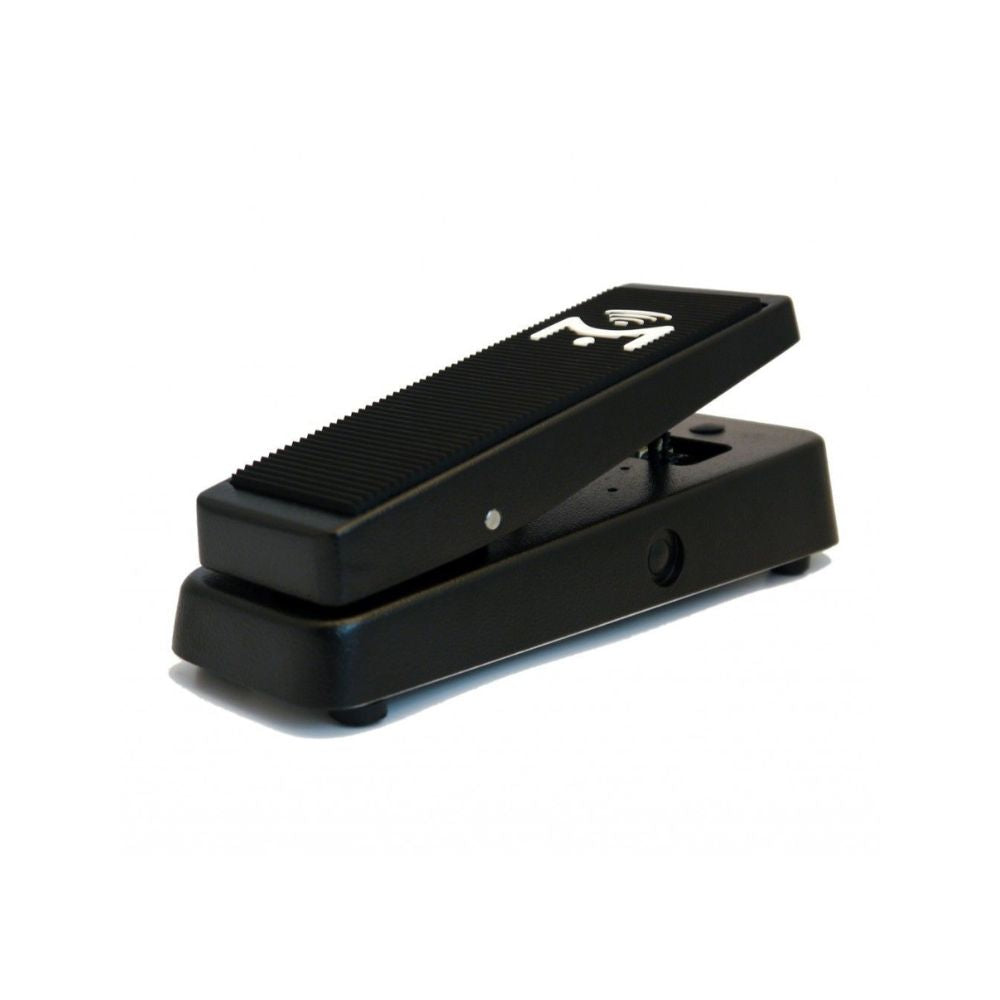

control voltage pedal Mission Engineering 5-CV‐BK Dual Output Control Voltage PedalDUAL OUTPUT 5V CONTROL VOLTAGE PEDAL FOR USE WITH SYNTHESIZERS, KEYBOARDS, AND EFFECTS Many synthesizers, keyboards, multi effects units and effects pedals can accept a CV input for controlling variable parameters, filters etc. The 5 CV provides two regulated 5VDC control voltages that can be varied by moving the pedal. Out 1 provides 5V at toe down and Out 2 provides 5V at heel down so that you can choose the direction of the sweep or connect two
DUAL OUTPUT 5V CONTROL VOLTAGE PEDAL FOR USE WITH SYNTHESIZERS, KEYBOARDS, AND EFFECTS
Many synthesizers, keyboards, multi-effects units and effects pedals can accept a CV input for controlling variable parameters, filters etc. The 5-CV provides two regulated 5VDC control voltages that can be varied by moving the pedal. Out 1 provides 5V at toe down and Out 2 provides 5V at heel down so that you can choose the direction of the sweep or connect two devices simultaneously in different directions.
No external interfaces are required as the analog control voltage is provided by the pedal, just connect one or both outputs to the CV inputs on your synth or effects units with a TRS cable. Works with most guitar pedal 9V power supplies.
The 5-CV requires an external 9VDC center pin negative power supply.
Please note that the 5-CV should be used with devices that accept a 5V control voltage (CV) only. The 5CV should never be connected to passive expression pedal inputs as damage to the pedal or the remote device could occur. Read the user manual, and check with the manufacturer of the device if you are not sure.
